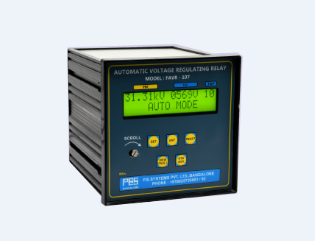

SALIENT FEATURES

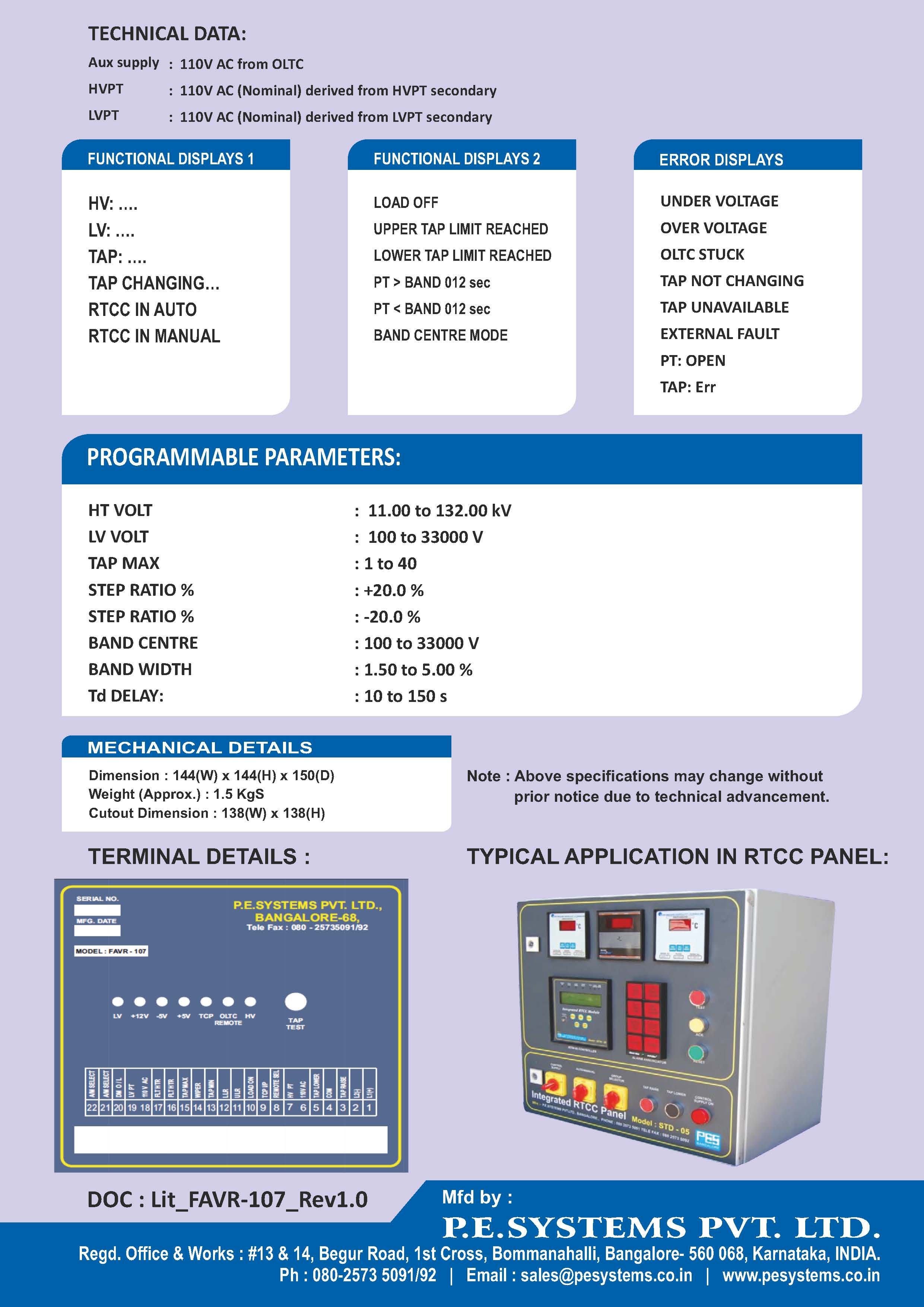

FUNCTIONAL DISPLAYS:
Download PDF

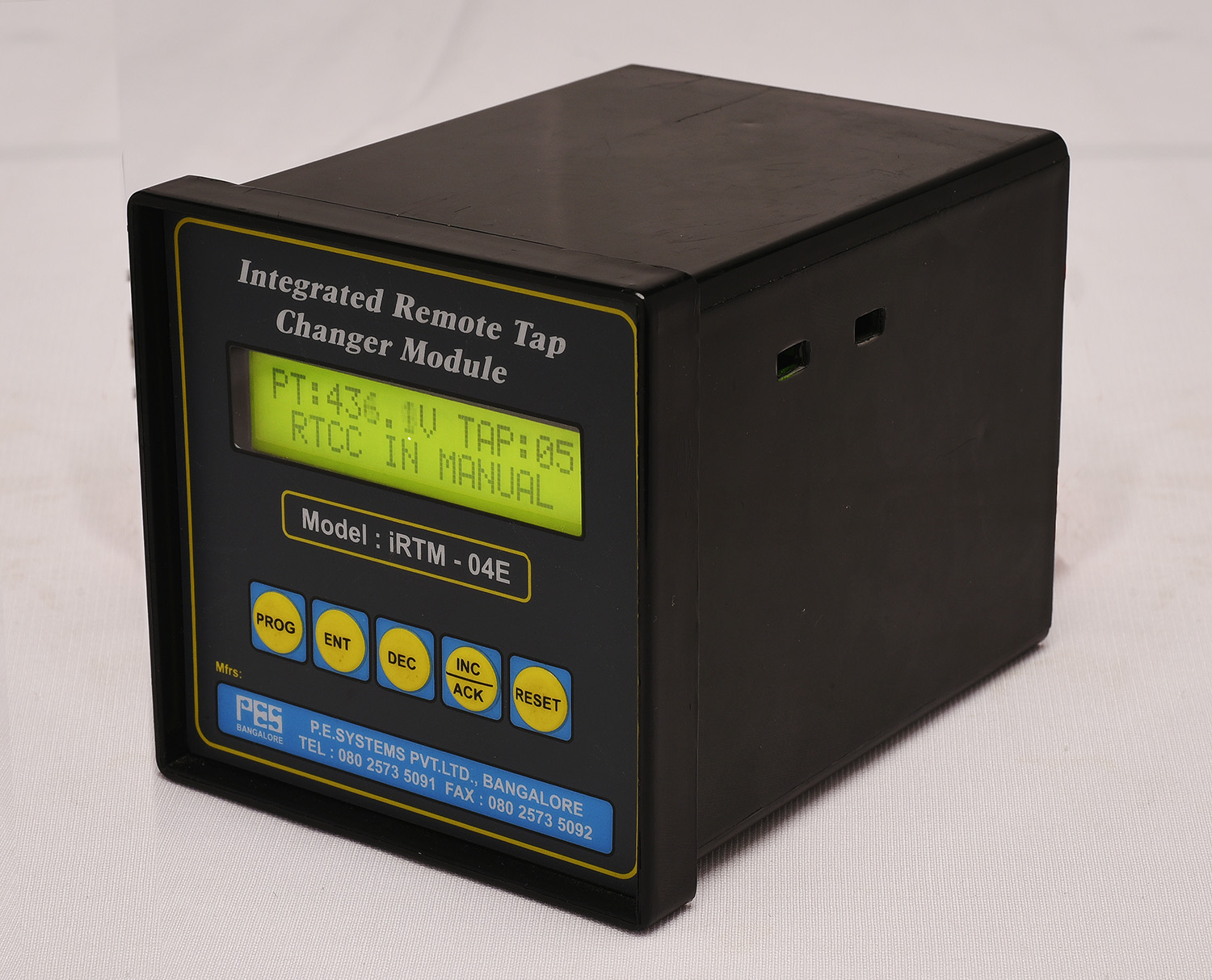

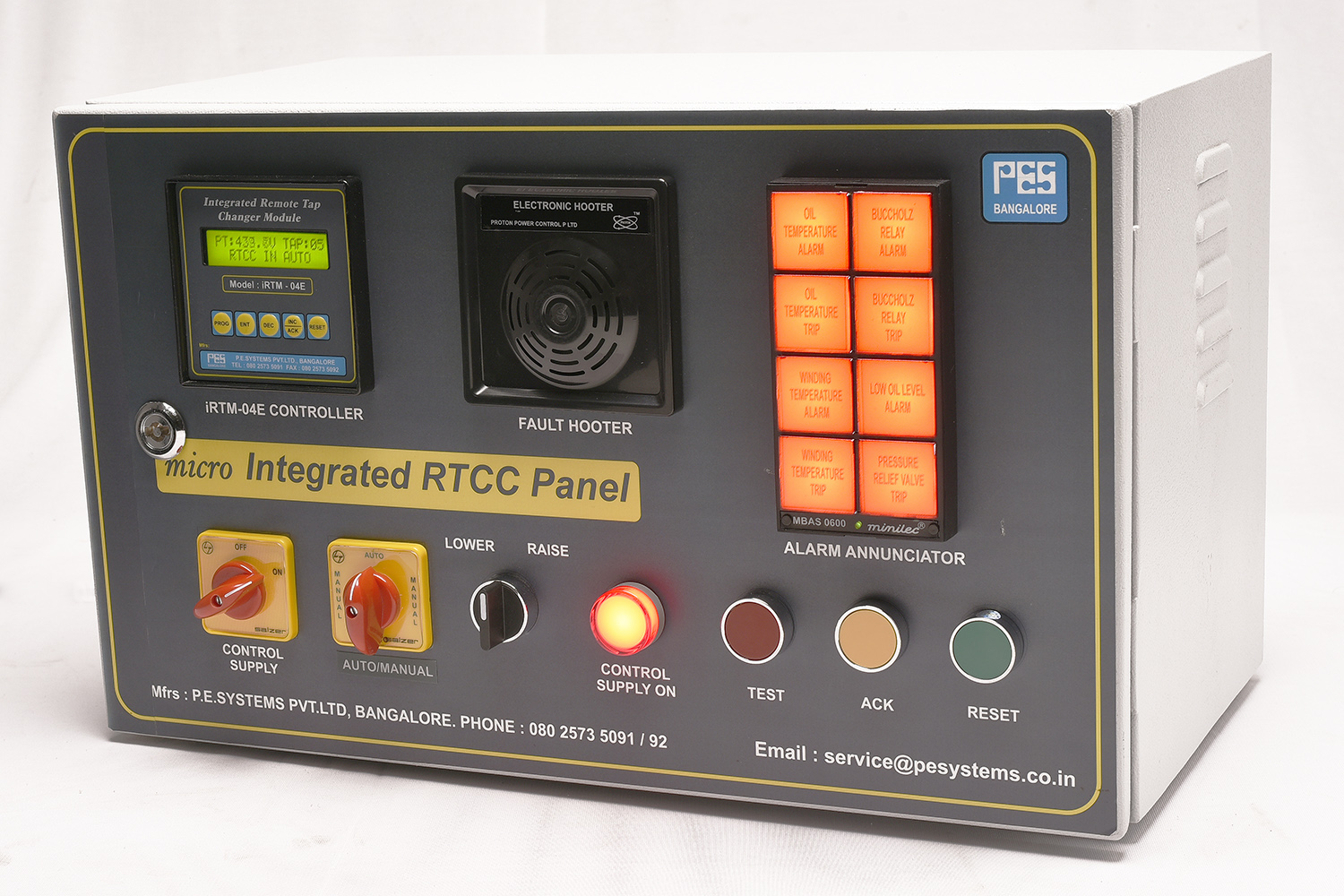

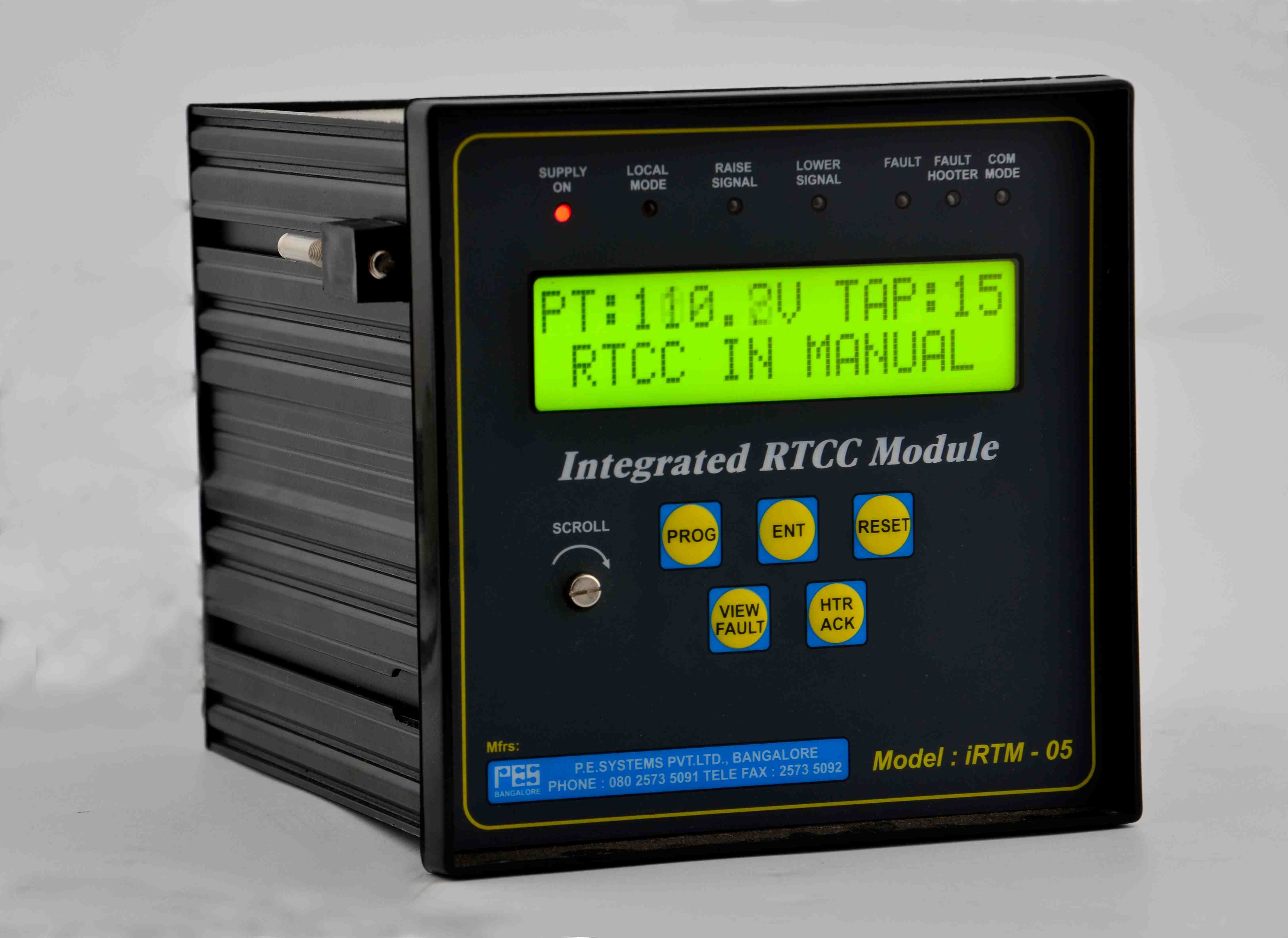

No OLTC status lamps and Controls required in RTCC panel – Major Cost Saving. iRTM – 04E has built-in features to display the following parameters:
SALIENT FEATURES:

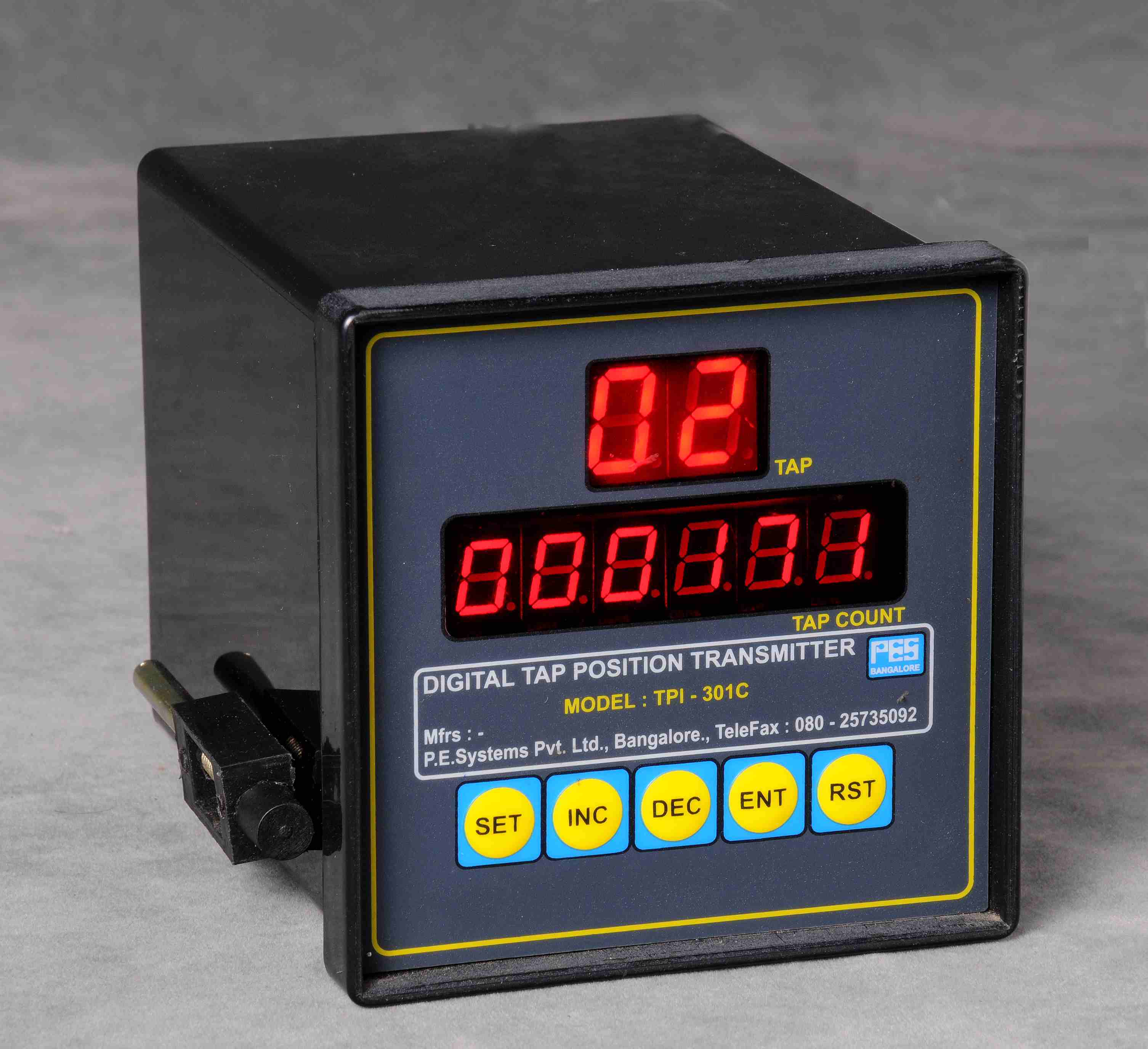

TPI - 301C
TPI - 301BCD
APPLICATION:

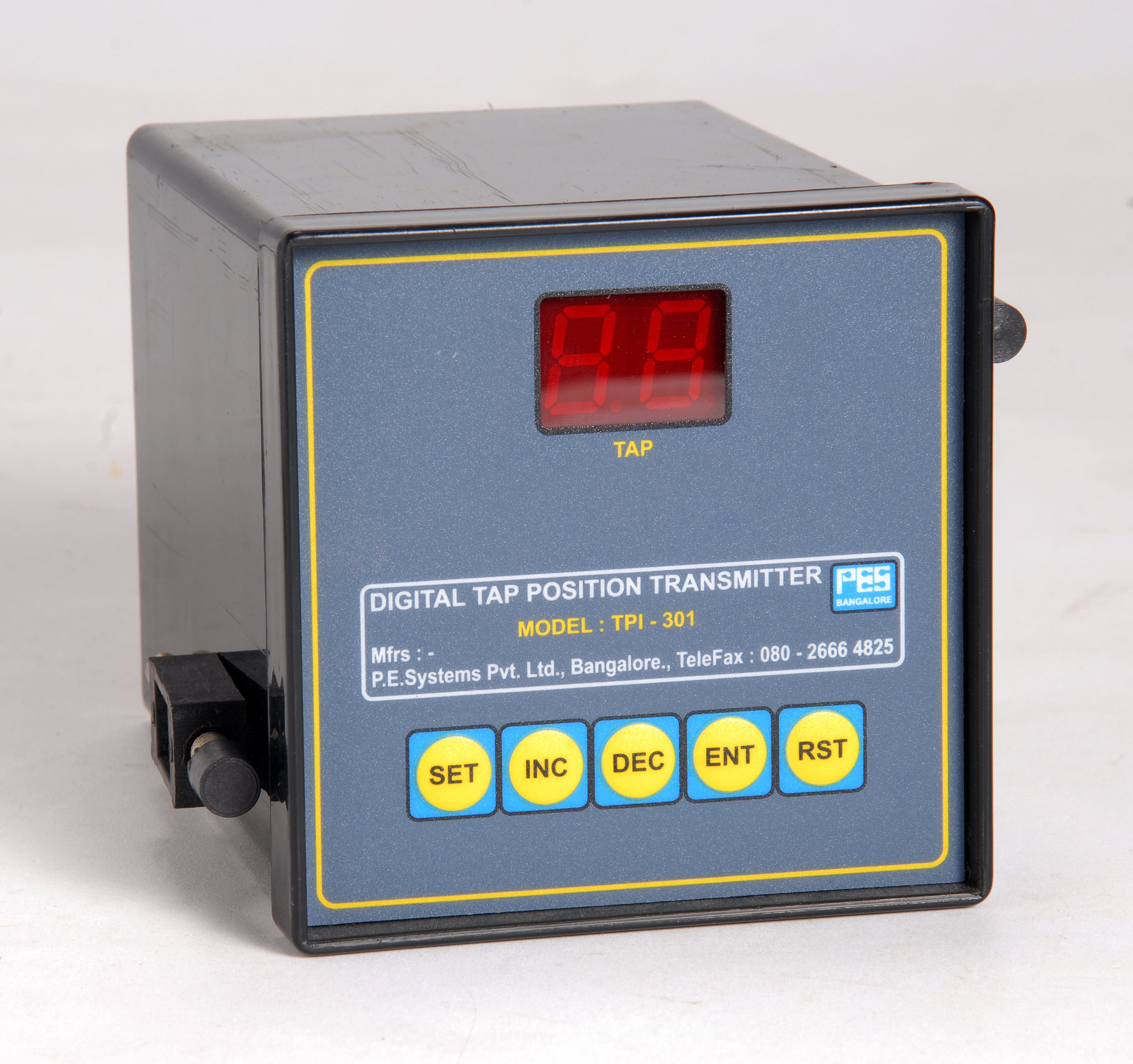

Model TPI 301 is a micro-controller based equipment used for Remote Indication of Tap Position of OLTC’s. It accepts 1k ohms/tap resistance 3-wire input from OLTC (except in case of TPI – 301BCD) and displays the
actual Tap Position. 4-20 mA Output has been provided as a standard feature. 4mA corresponds to TAP1 and 20mA corresponds to MAX TAP in OLTC. The MAX TAP is programmable on-site. The equipment is powered by an SMPS which can accept a wide variation in the Input Aux. Supply.
Optional features are provided to indicate the number of operations of OLTC and also RS 232/ RS 485 MODBUS Communication Port for SCADA application.
UNIQUE FEATURES::
APPLICATION:

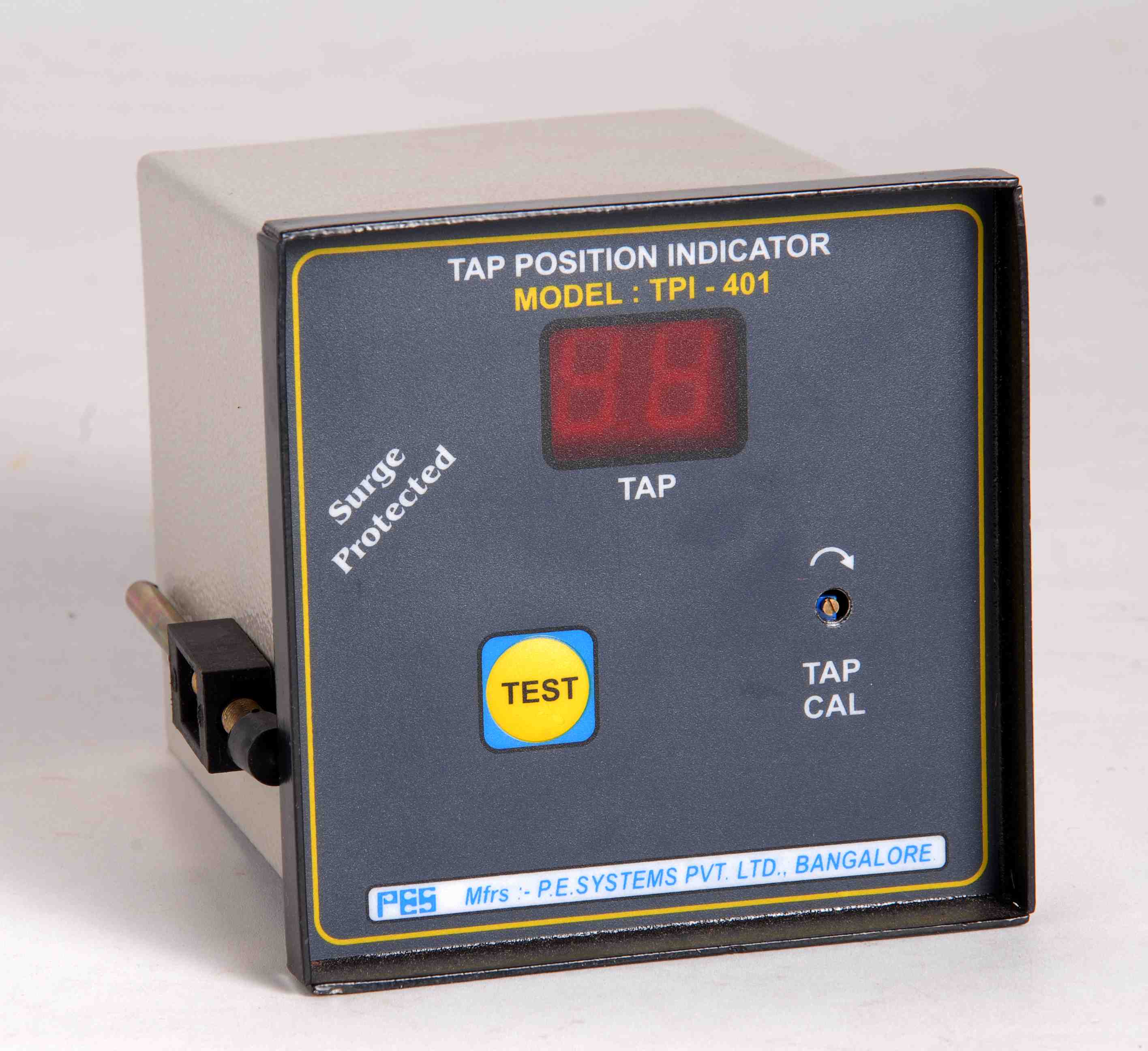

Model TPI – 401 is a surge protected equipment used for Remote Indication of Tap Position of OLTC’s. It accepts 1k ohms/tap resistance 3-wire input from OLTC and displays the actual Tap Position.
UNIQUES FEATURES:
Download PDF

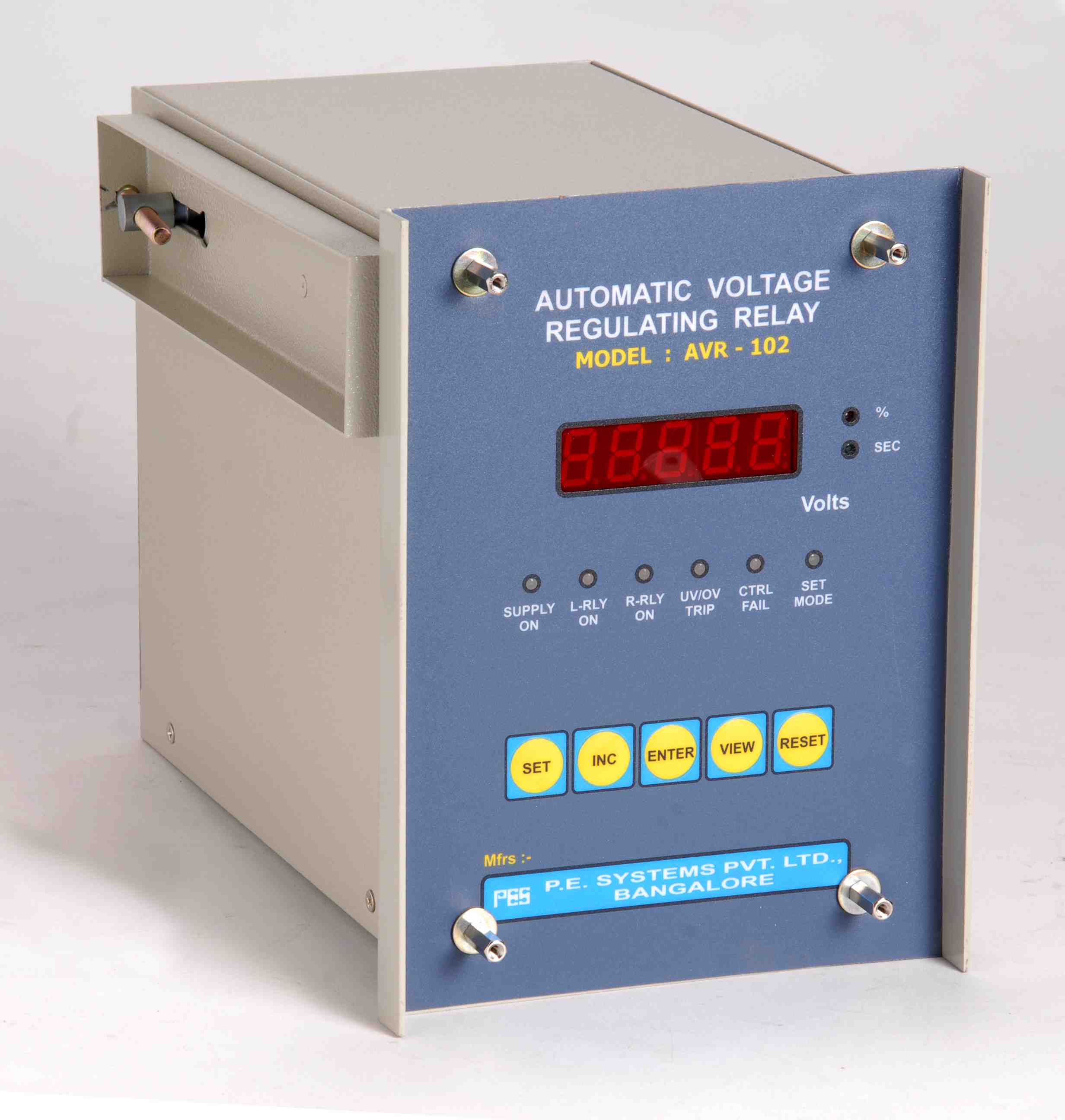

The Automatic Voltage Regulating Relay Model AVR - 102 serves for the Automatic Regulating Transformers equipped with on-load-Tap changer. The user friendly Soft Key Programming enables precise setting of NVA, Band width, Initial time delay, control pulse ON / OFF duration, under / over voltage Trip & Restoration levels and control failure time delay settings. Provision of surge protecting devices and RF / EMI filters ensures trouble free operation even in highly electrified terrains.
Download PDF
| Voltage level (NVA) | 99.0V ..... 121.0 Volts insteps of 0.1V. |
| Lower Relay setting (LRS) | 100.5% ..... 105.0% of a NVA insteps of 0.1%. |
| Raise Relay setting (RRS) | 99.5% ..... 95.0% of NVA insteps of 0.1%. |
| Initial time delay (td) | 0.3 ..... 120.0 secs insteps of 0.1 secs. |
| Control pulse ‘ON’ time duration (tON) | 0.2 ..... 0.8 secs insteps of 0.1 secs. |
| Control pulse ‘OFF’ time duration (tOFF) | 3.0 ..... 10.0 secs insteps of 0.1 secs. |
| Under voltage and Restoring level (UVT/UVR) | 69% ..... 89% of NVA insteps of 0.1%. |
| Over voltage & Restoration Level (OVT / OVR) | 110% ..... 120% of NVA insteps of 0.1%. |
| PT INPUT | 110VAC from Secondary of suitable PT < 1 VA at 50 Hz. |
| AUX POWER SUPPLY | 110V (+ 15%, - 30%) 50 Hz 12 VA. |

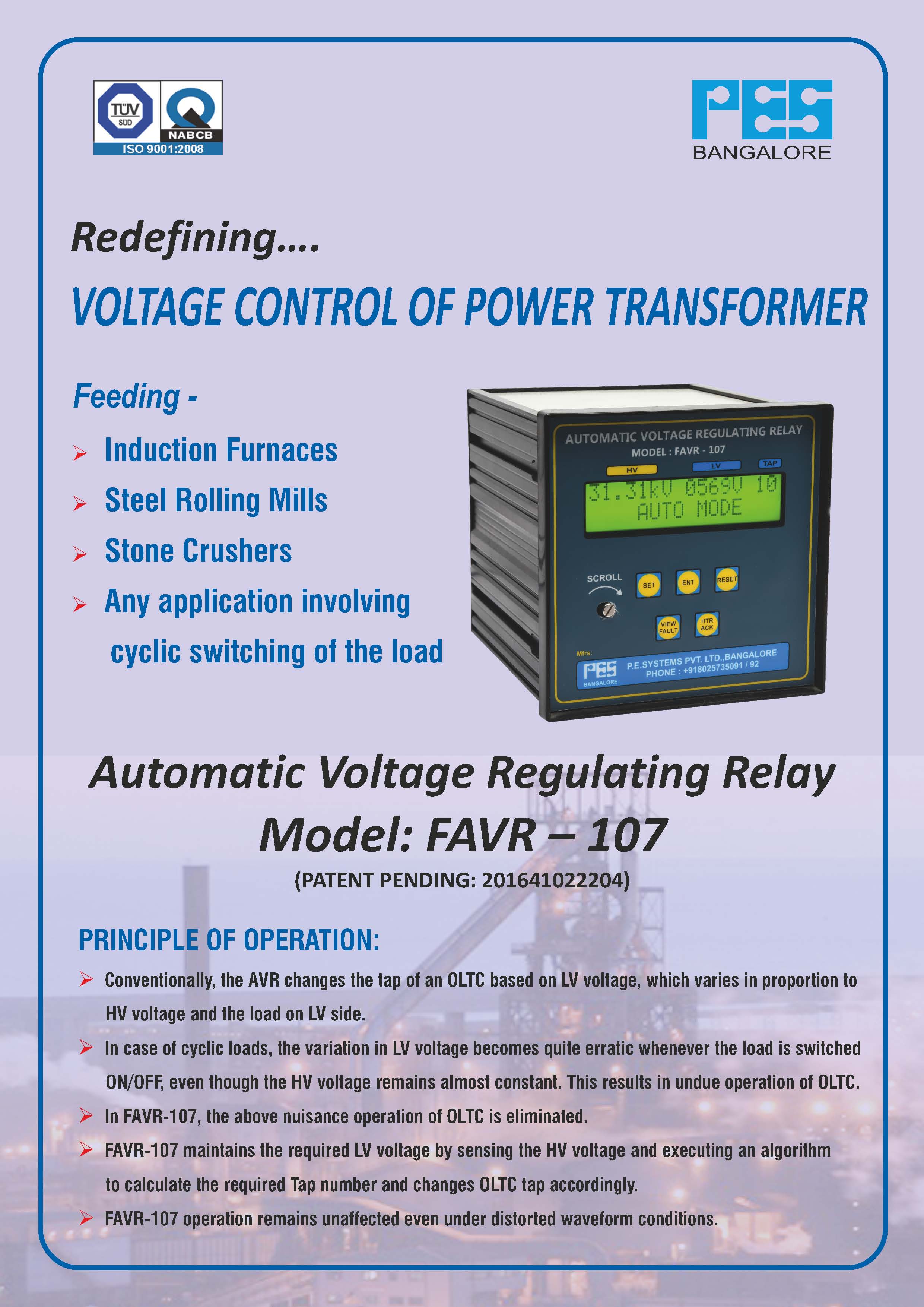

(PATENT PENDING: 201641022204)
Redefining Voltage Control of Power Transformers feeding:
APPLICATION::
Download Details-1
Download Details-2
Transformer Test Bench Models:
Tests that can be Conducted in Fully Automatic and Manual Mode
Other Tests
Routine & Type Tests
Test Certificate
Download PPT
